Menşe yeri: | Shandong Eyaleti, Çin |
---|---|
Marka adı: | SH |
Sertifika: | ISO9001,CE |
Model numarası: | SHJM-400, SHJM-650, SHJM-800, SHJM-1000, vb. |
Min sipariş miktarı: | 1 set |
Fiyat: | US $5,300-13,950 / Set |
Ambalaj bilgileri: | Demir çerçeve paketleme veya konteyner yükleme |
Teslim süresi: | 15 gün içinde |
Ödeme koşulları: | T/T, Western Union |
Yetenek temini: | 1000 takım/Yıl |
İsim: | hassas yeniden testere şerit testere | Durum: | Yeni |
---|---|---|---|
Tip: | Bant | Ana motor gücü: | 15kw, 18.5kw, 22kw, 30kw |
Besleme motoru: | 0.75kw, 1.5kw | Testere Çapı: | 600mm, 700mm |
Max. testere genişliği: | 1000mm | Maks. İşleme yüksekliği: | 110mm |
Besleme hızı: | İnverter, hız ayarlanabilir | Garanti:: | 1 yıl |
Satış sonrası hizmet sağlanan hizmet: | Çevrimiçi destek, Video teknik desteği, devreye alma ve eğitim | ||
Vurgulamak: | horizontal band sawmill for wood cutting,precision band resaw machine,industrial bottom cutting sawmill |
For high-volume woodworking operations, achieving flawless, consistent cuts isn't just a goal—it's a necessity for profitability. An industrial precision resaw bandsaw is engineered to deliver exactly that: unparalleled accuracy and efficiency in every cut. This machine transforms raw lumber into high-value products by maximizing yield and ensuring a superior finish, directly boosting your bottom line through reduced waste and increased output.
Unmatched Cutting Accuracy & Consistency
Benefit: Produce glue-ready laminates and perfectly dimensioned lumber with exceptional smoothness, minimizing the need for secondary planing or sanding.

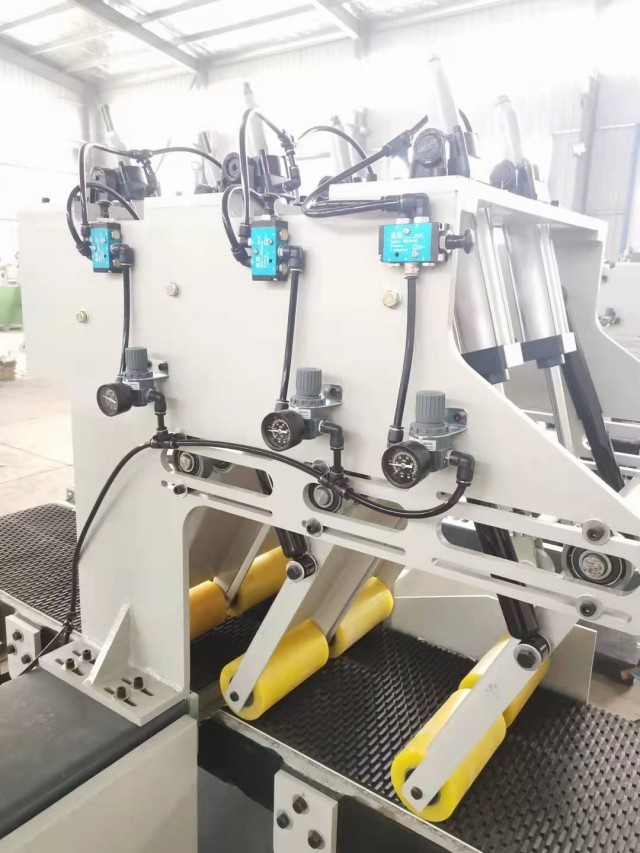

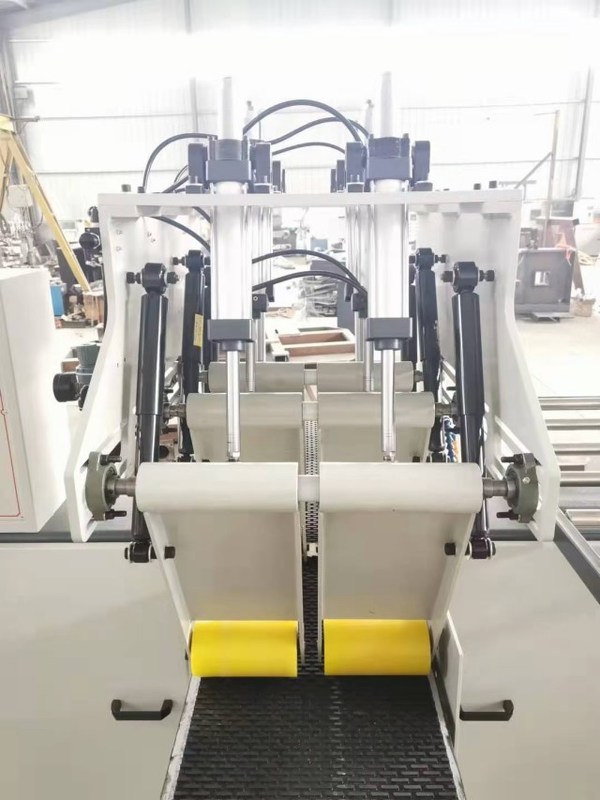

Features Behind the Benefit: A sophisticated fence system ensures precise workpiece positioning, while computer-balanced wheels and ultra-rigid construction eliminate vibration for dead-straight cuts.
Industrial-Grade Construction for Demanding Environments
Benefit: Experience rock-solid stability and durability that stands up to the rigors of continuous production, ensuring long-term reliability and minimal downtime.
Features Behind the Benefit: Built with heavy-duty components like solid cast-iron wheels, robust trunnions, and a large, stable cast-iron table that forms an unshakable foundation.
Model | SHJM-400 | SHJM-650 | SHJM-800 | SHJM-1000 |
Saw wheel diameter | 600MM | 700MM | 700MM | 700MM |
Max. processing width | 400MM | 650MM | 800MM | 1000MM |
Max. processing height | 110MM | 110MM | 110MM | 110MM |
Sawn min.thickness | 2MM | 2MM | 2MM | 2MM |
Feeding speed | 0.1-30m/min | 0.1-30m/min | 0.1-30m/min | 0.1-30m/min |
Main motor power | 15KW | 18.5KW | 22KW | 30KW |
Feeding motor power | 0.75KW | 0.75KW | 1.5KW | 1.5KW |
Sawn sizes setting | CNC digital | CNC digital | CNC digital | CNC digital |
Machine weight | 1850kgs | 2550kgs | 2750kgs | 3150kgs |

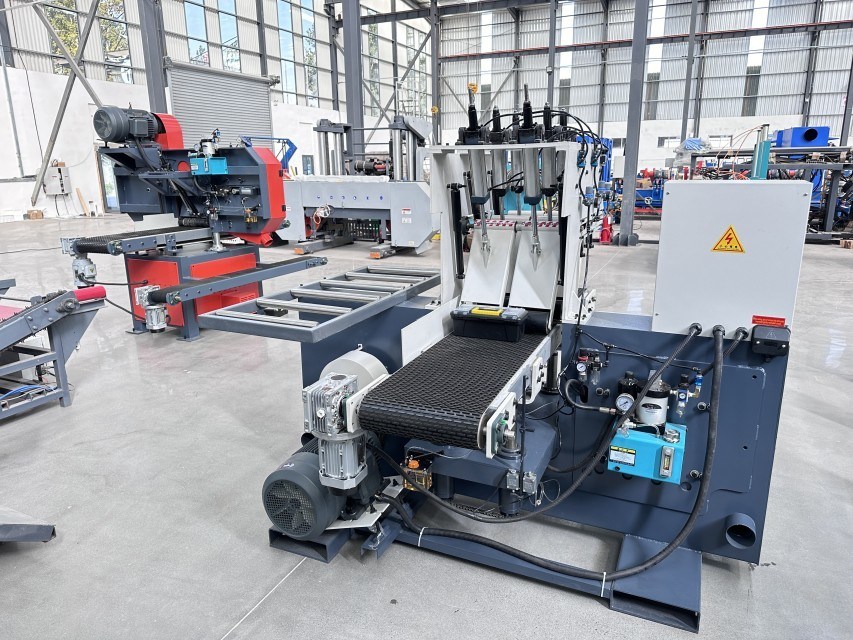

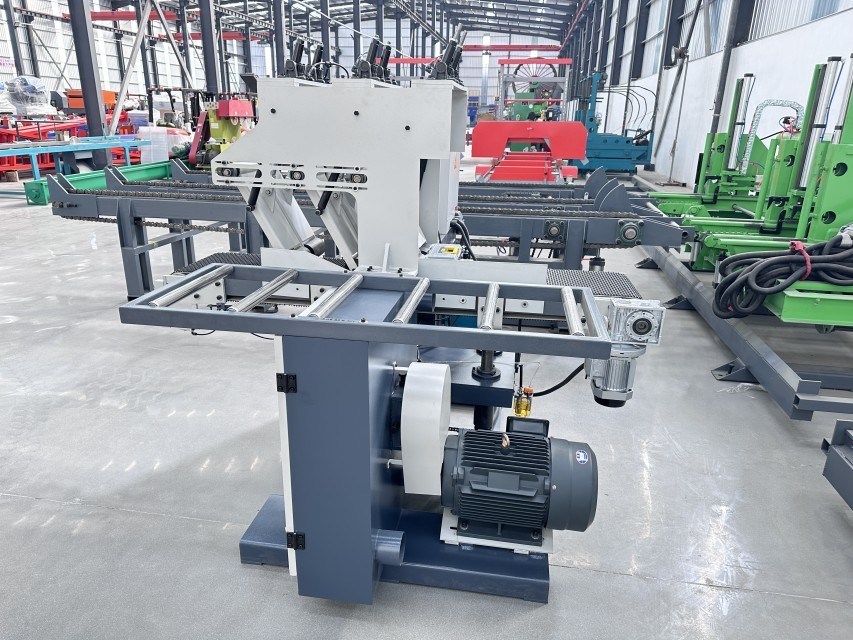

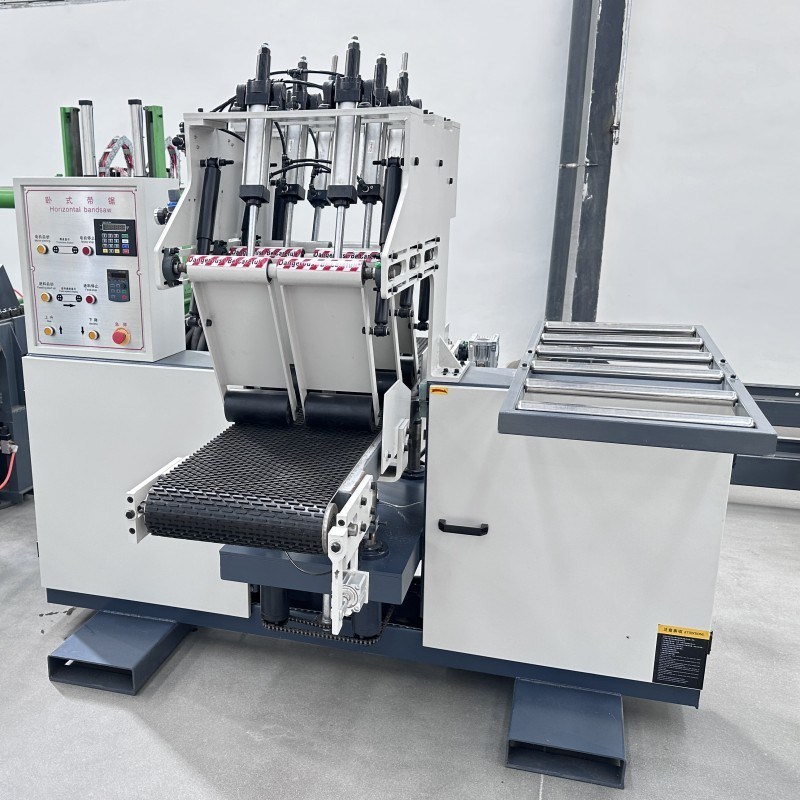

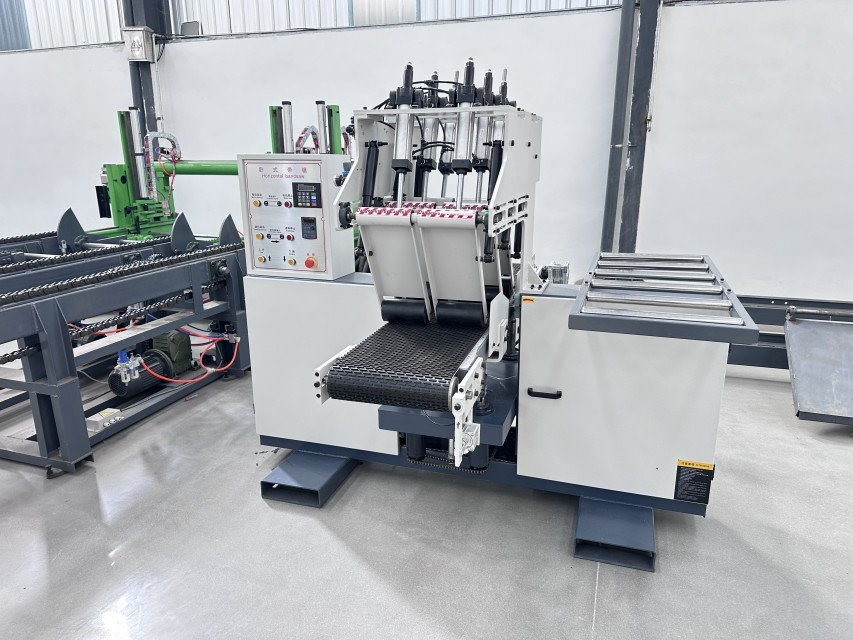

Precision Slice Horizontal Band Sawmill
Horizontal Resaw Band Saw Mills | |||
Model | SH350 | SH650 | SH800 |
Saw Wheel Diameter | 710 mm | 710 mm | 710 mm |
Maximum Cutting Width | 350 mm | 650 mm | 800 mm |
Maximum working Wood Height | 200 mm | 220 mm | 220 mm |
Max Sawing Height
|
100 mm | 110 mm | 110 mm |
Min Sawing Thickness
|
2 mm | 2mm | 2mm |
Feeding speed | Variable Frequency Adjusted Speed | ||
Main Electric Motor Power | 15 KW | 18.5 KW | 18.5KW |
Up/down motor | 0.37kw | 0.37kw | 0.37kw |
Feeding motor | 1.1kw | 1.1kw | 1.5kw |
Machine Weight | 1000 KG | 1200 KG | 1400 KG |
Is a Precision Resaw Bandsaw Right for You?
This machine is purpose-built for industrial production settings, cabinet shops, and specialized mills focused on high-volume, precision work. If your operations involve frequently breaking down thick stock or require the ability to produce thin, consistent slices of wood with a flawless finish, a precision resaw is an indispensable asset.
